COMEUP Slim 9.5rs Trail Edition Winch – 9,500 lb, 12V, Synthetic Rope

The COMEUP Slim 9.5rs Trail Edition is a compact, low-profile winch engineered for overland expedition and trail recovery where space is limited but performance cannot be compromised. Delivering a dependable 9,500 lb rated line pull, the Slim 9.5rs combines modern winch technology with a reduced-height design for tight bumper and winch tray applications.

This winch integrates as a direct plug-and-play solution for select Dissent Off-Road front winch bumpers, including applications for the GX550, LC250, 4Runner, and other compatible platforms requiring a compact winch footprint.

Trail Edition upgrades include the innovative BossHook-M and a dedicated winch fuse kit, providing enhanced safety, protection, and long-term reliability for demanding off-road environments.

Key Features

9,500 lb (4,309 kg) rated single-line pull
5.0 HP / 3,730W 12V series-wound motor
Slim, low-profile design for tight bumper and winch tray applications
Synthetic rope for reduced weight and safer recovery
Wireless digital remote plus waterproof wired remote with thermometric LED indicator
Automatic CBS (Cone Brake Structure) braking system (outside the drum)
BossHook-M closed-system recovery hook

Specifications

Rated Line Pull	9,500 lb (4,309 kg) single line
Motor	5.0 hp / 3,730 W, 12V series wound
Gear Train	3-stage planetary
Gear Ratio	159:1
Clutch (Free Spool)	Rotating ring gear
Brake (Outside the Drum)	Automatic, full load CBS (Cone Brake Structure)
Winch Construction	Aluminum die-cast housing with steel drum
Drum Size	2.5" × 8.9" (63.5 × 227 mm)
Control	Built-in digital two-way wireless remote + waterproof wired remote (17 ft / 5 m) with thermometric LED indicator
Rope Type	Synthetic rope
Rope Size	3/8" × 76 ft (10 mm × 23.2 m)
Warranty	Limited lifetime mechanical warranty; 3-year electrical warranty
Box Dimensions	26.9" × 8.2" × 16.9" (682 × 209 × 430 mm)

Line Speed & Amp Draw (1st layer of rope on drum)

Line Pull	Line Speed	Amp Draw (A)
No Load	14.8 mpm / 48.6 fpm	60
907 kg / 2,000 lb	4.8 mpm / 15.7 fpm	115
1,814 kg / 4,000 lb	3.6 mpm / 11.8 fpm	210
2,722 kg / 6,000 lb	2.8 mpm / 9.2 fpm	245
3,629 kg / 8,000 lb	2.3 mpm / 7.6 fpm	280
4,309 kg / 9,500 lb	2.2 mpm / 7.2 fpm	380

Line Pull & Rope Capacity

Rope Layer	Pull by Layer	Total Rope on Drum
1st	4,309 kg / 9,500 lb	5.1 m / 16.7 ft
2nd	3,472 kg / 7,655 lb	11.7 m / 38.4 ft
3rd	2,908 kg / 6,410 lb	19.7 m / 64.6 ft
4th	2,501 kg / 5,514 lb	23.2 m / 76.0 ft

LC100

Price

Collections

Combo Lights - Stop / Turn / Reverse combination LED

ComeUp Slim 9.5rs Trail Edition Winch

Overland Panels Swing-out

Aluminum Tray Swing-Out

Flip-Up License Plate Mount

Rigid Industries 3X3 Flush Mount Light Set (212113)

Triple Jerry Can Basket Swing-out

Tire Carrier Swing-out

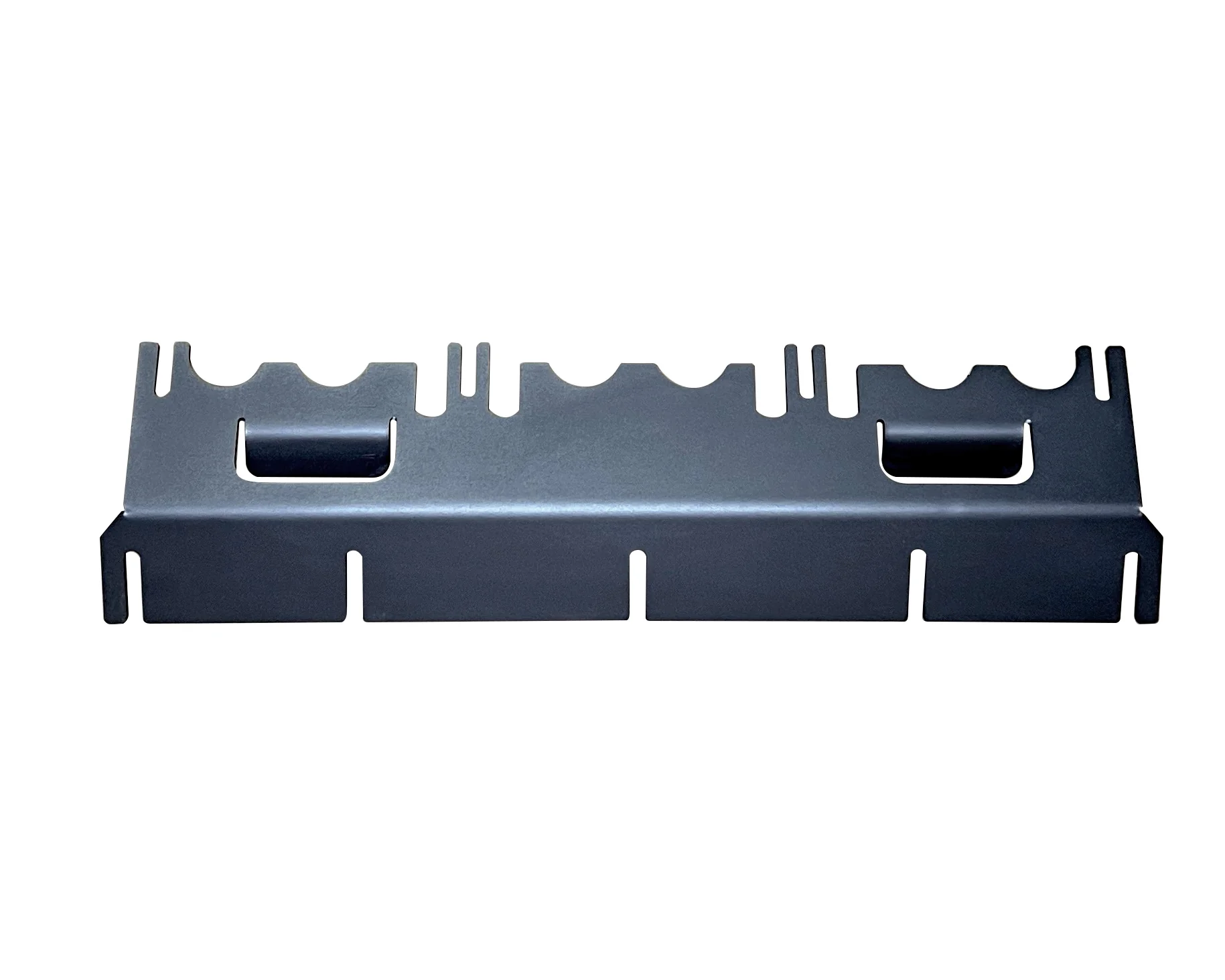

LC100 Tie-in Skid Plate (For V2 and V1 bumpers)
